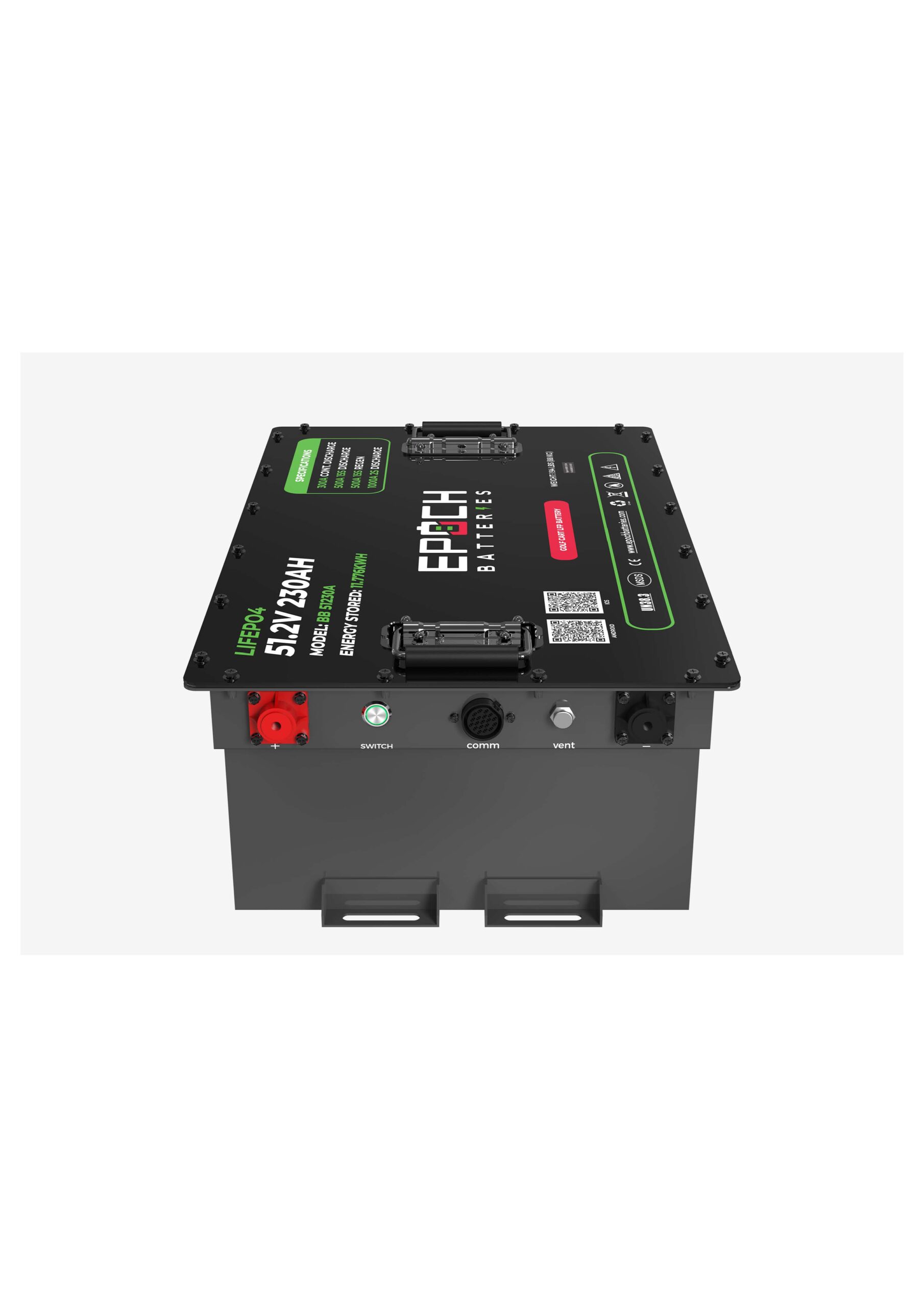

48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit - Image 1

48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit - Image 2

Click to enlarge

48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

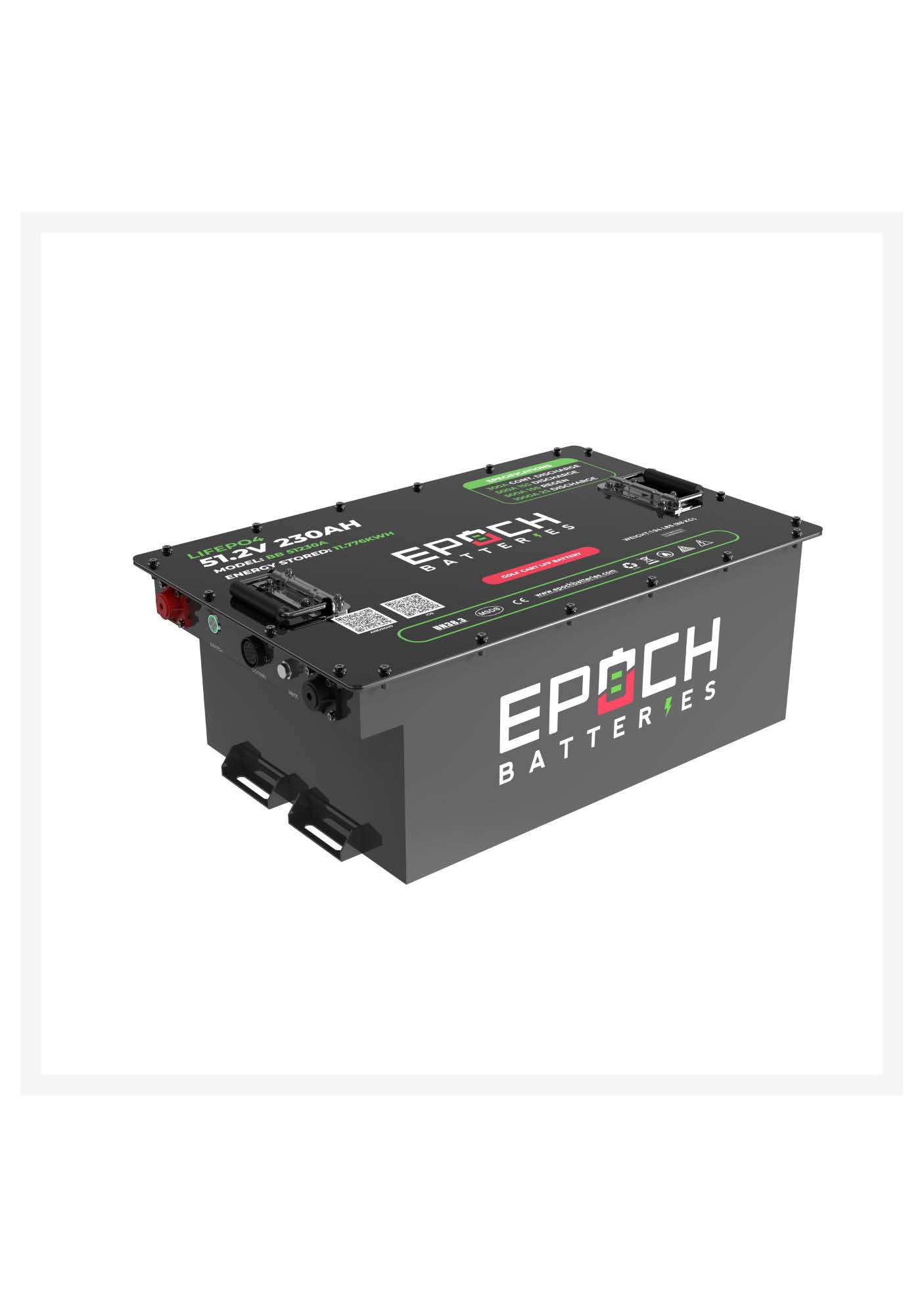

48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit - Image 3

48V 230Ah – LiMax Series – Lithium (LiFePO4) Golf Cart Battery – Complete Kit

Name: 48V 230Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit
SKU: BB51230A-Kit-1
Availability: InStock

$2,999.00

Compare

Add to wishlist

SKU: BB51230A-Kit-1 Category: Lithium Batteries

Description

Complete Lithium Conversion Kit

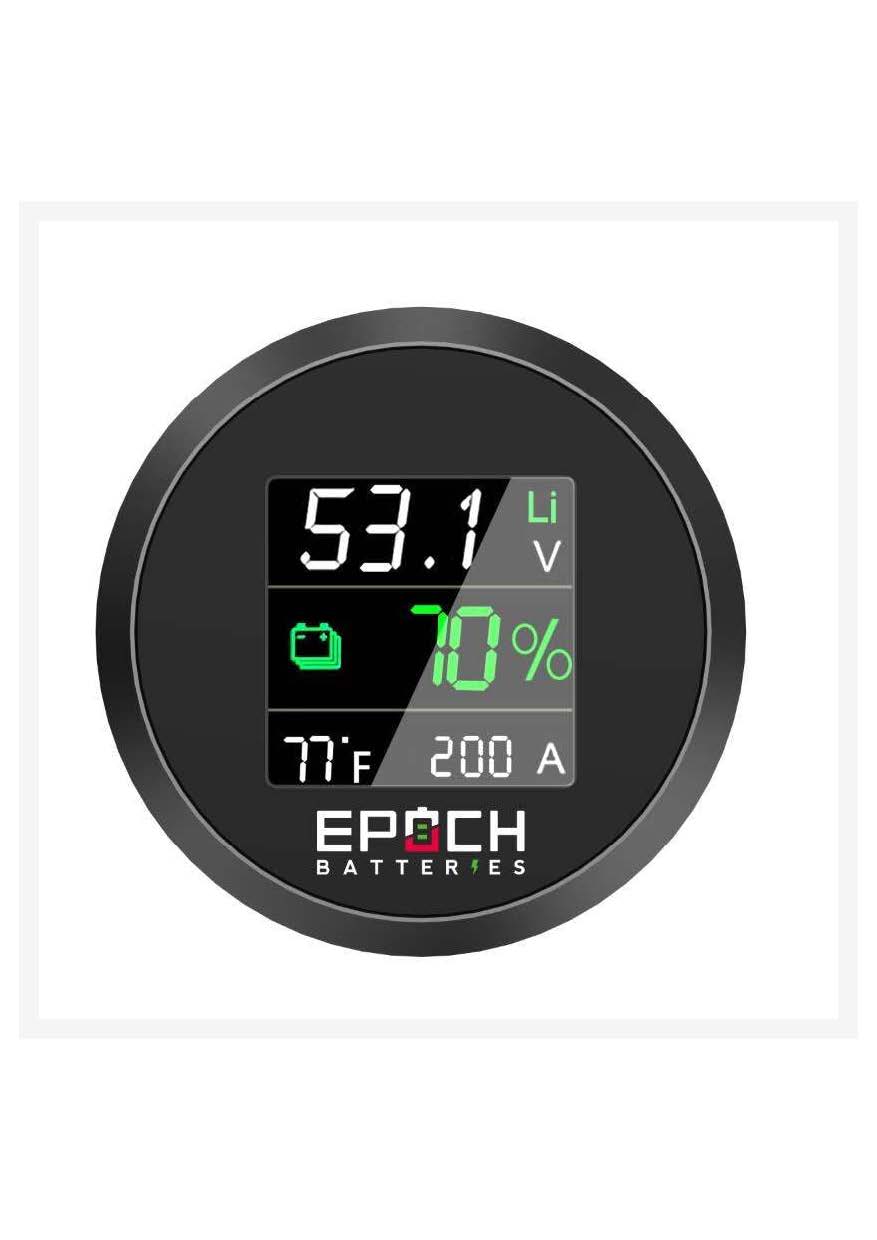

48V 22A Lithium Charger, Battery Gauge, 12V Converter INCLUDED

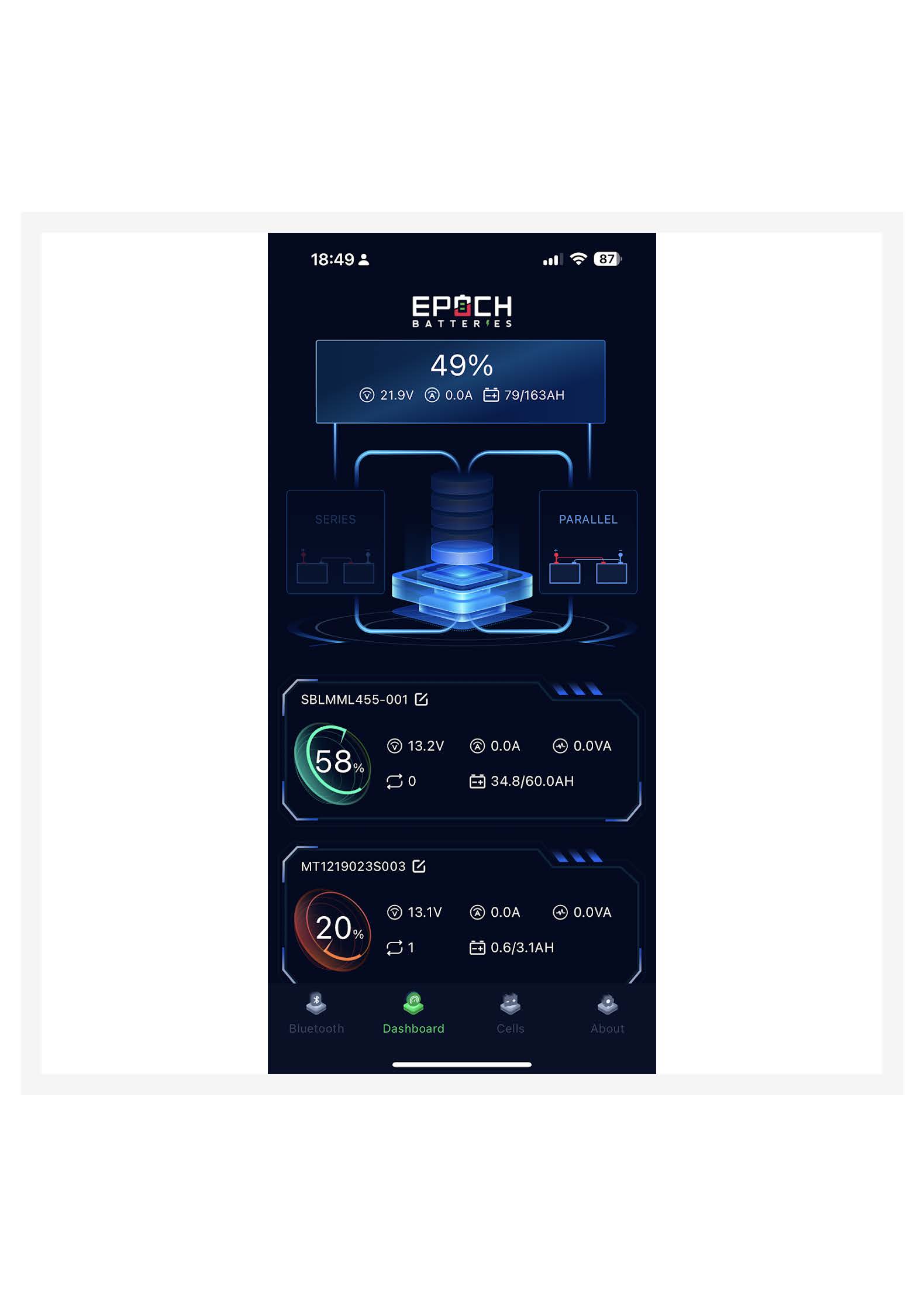

Bluetooth App (iOS & Android)
Over the air firmware updates available
300A Max Continuous Discharge
500A @ 15s, 1,000A @ 2s Peak Discharge
230A Max Continuous Charge
500A @ 15s Peak Charge/Regen
4,000 Cycle Life
11 Year Warranty

Configuration

Cell Configuration: 1P16S

Chemistry: LiFePO4

Current

Ah Capacity: 230Ah

Max Continuous Discharge Amps: 300A

Max Charge Current Amps: 230A Continuous, 500A @ 15s

Max Discharge Peak Current Amps: 500A @ 15s, 1,000A @ 2s

Series | Parallel: Max (2) in Parallel

Voltage

Voltage: 51.2V

Max Charge Voltage: 58.4V

Operating Voltage Range: 40 – 58.4V

Temperature

Charge Temp Range: 0°C (32°F) / 55°C (131°F)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight: 196 (LBS)

Dimensions

Length: 23.5 (inches)

Width: 14.4 (inches)

Height: 9.9 (inches)
